| Product |
Current Location：Home > Product > KAP-500 type |
|

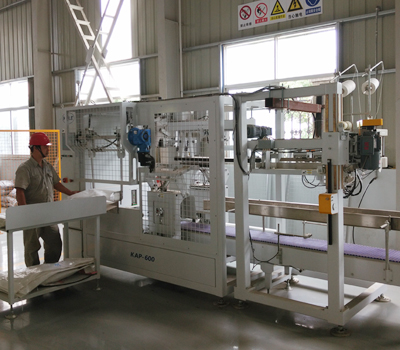

| KAP-500 type |
| |
|
|
|
| |
| Special design for meeting the packing needs of soybean meal material |
| Applicable to non coating woven bags with air permeability |
| Adaptable to 50~70kg/b line-styled pillow bag, convenient for adjustment |
| Compact structural design |
| Compact clipped bag design avoids raising dust |
| Equipped with unique straight folding type folding machine |
| Patented labeling machine meets reliable conveying of paper label |
| Automatic stitching and thread cutting |
| Bag attaching, thread breaking, label lack detection and system interlocking |
| The actions of bag attaching, bag trimming, edge folding, label conveying and bag stitching are fulfilled at one go |
| Friendly human-machine interface, convenient for use |
| Remote diagnosis function (optional), easy for maintenance |
Type of packing bag:
|
line-styled pillow bag |
Material of packing bag:
|
Material of packing bag: |
Size of packing bag:
|
（1100~1250）L×（650-700）W ( mm) |
Working capacity:
|
700~800 Bags/h
(depend on specific property and packing dimension of materials to be packed) |
Power:
|
6kW |
Filling volume:
|
50~70kg |
Power supply:
|
AC380V(+10%~-15%) /3P/50Hz，6kW |
Compressed air:
|
Pressure:0.6Mpa (clean and dry) ；(clean and dry)~1600NL/min |
Operating temperature:
|
+5℃～＋45℃ |
|
|
|
|
|
|
